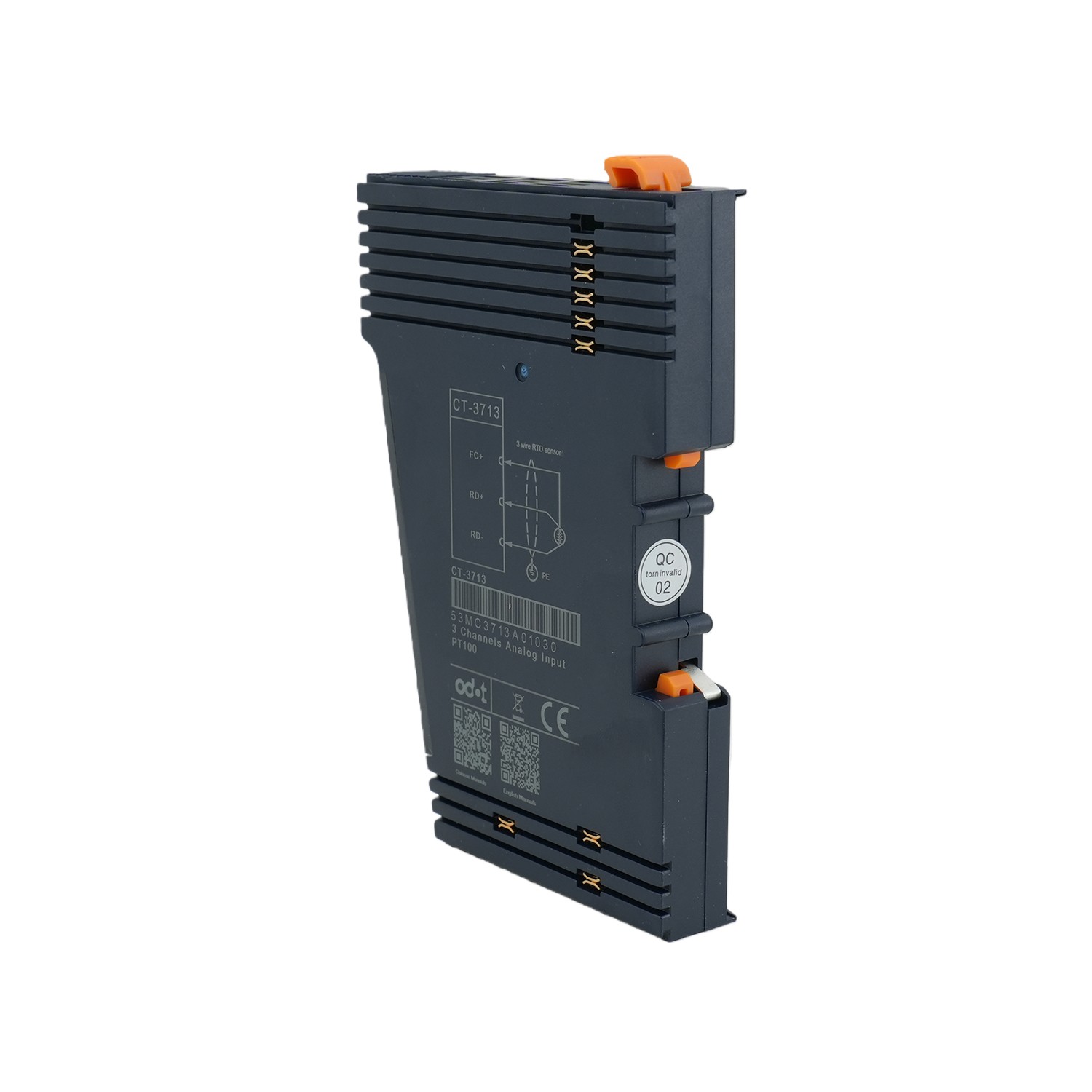

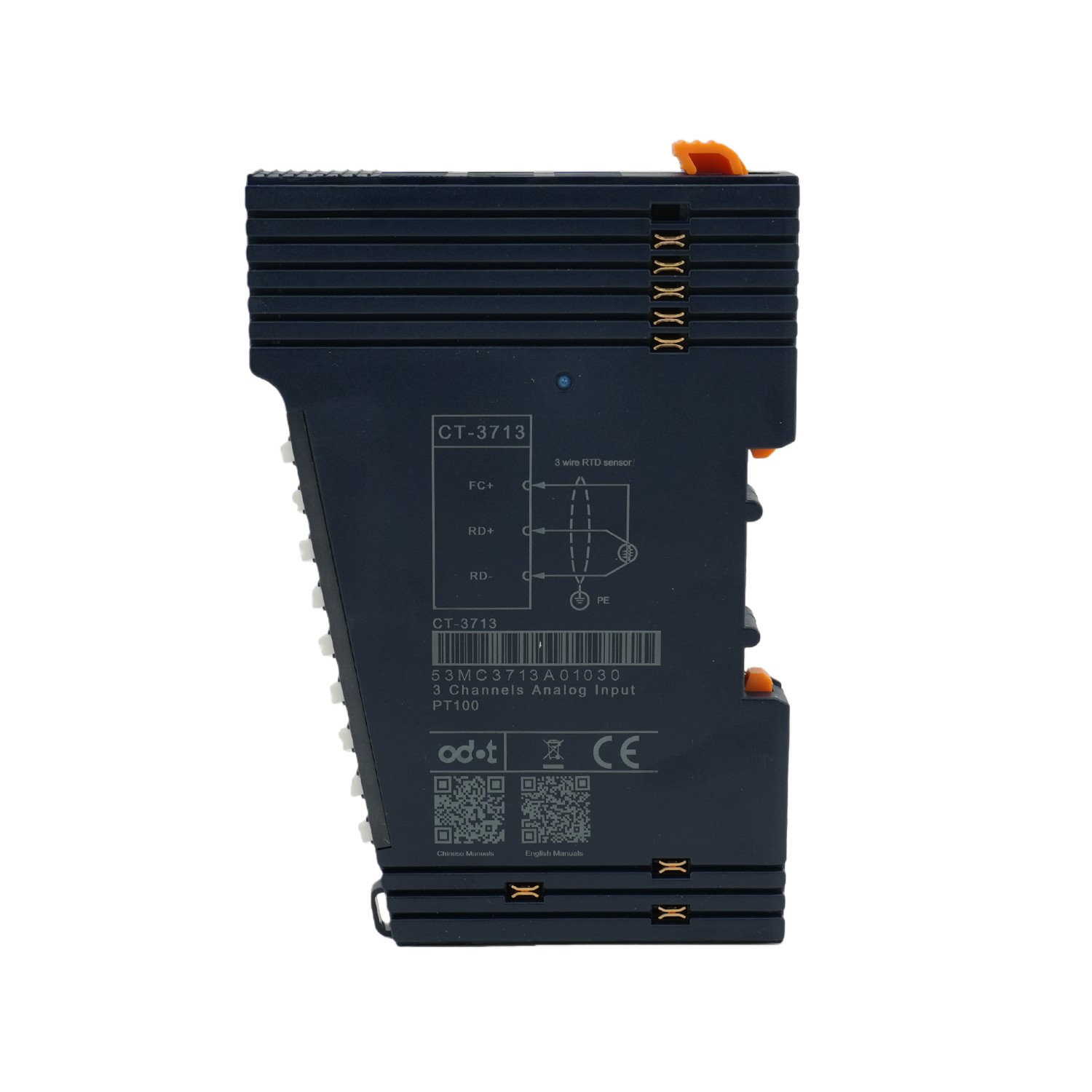

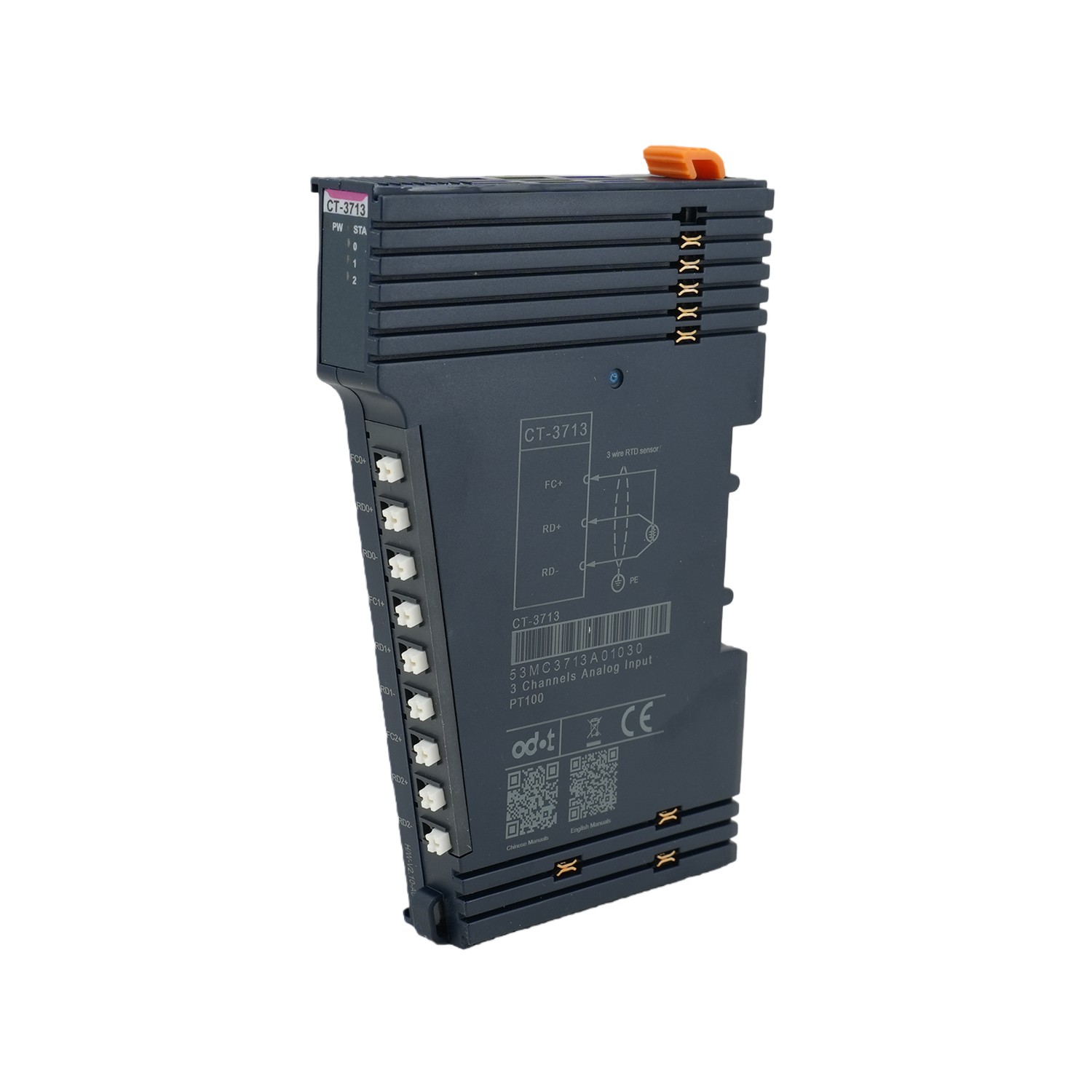

CT 3713 RTD Temperature Acquisition Module 3CH PT100

CT-3713 RTD Temperature Acquisition Module 3CH PT100 CT-3713: 3-channel RTD-PT100 temperature acquisition module Module features 1. The module supports 3-channel RTD thermal resistance (PT100) temperature acquisition 2. The module could be connected to a 2-wire or 3-wire PT100 temperature sensor 4. The internal bus of the module and field input adopts magnetic isolation 5. The module carries with 3 analog input channel LED indicator 6. 15-bit ADC resolution Technical Parameters Output Parameters Power Max.37mA @ 5.0Vdc Isolation I/O to internal bus: magnetic isolation (2.5KVrms) Field power Not used Wiring Max: AWG 18 Mounting Type 35 mm Din-Rail Size 115*14*75mm Weight 65g Environment Specification Operating Temperature of Vertical Installation -35℃~70℃ Operating Temperature of Horizontal Installation -35℃~60℃ Relative Humidity 5~ 95%RH (No Condensation) Storage Temperature -40℃~85℃ Storage Humidity 5~ 95%RH (No Condensation) Manufacturing Test Temperatu…
