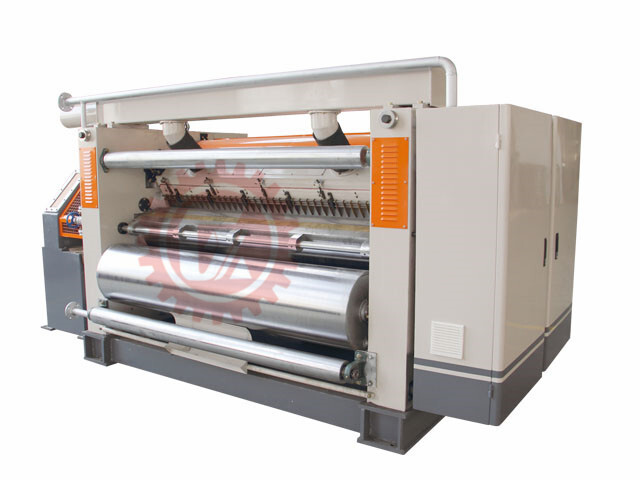

SF-320C Adsorption Single-Sided Machine

General technical parameters: 1. Corrugated roller: phi 320mm 2. Working width: 1200-2000mm 3. Operation direction: left or right (determined according to the customer's factory) 4. Design speed: 150m/min 5. Corrugated type (UV type or UVV type): A \ C \ B \ E Structural characteristics: Adopting a hood suction structure, equipped with high-pressure and powerful fans. The gas source and electrical control are centralized in the same operating cabinet, with the operating side fully enclosed and covered. High quality resin sand castings, using an independent gearbox and universal joint transmission structure. A lifting trolley has been installed on the conveyor bridge, which can be used to remove the tile roller assembly and pressure roller when needed, making it convenient and efficient. The glue roller unit adopts an overall external moving structure, which can be moved out of the machine as a whole during maintenance, improving work efficiency. Equipped with spray humidity control de…
