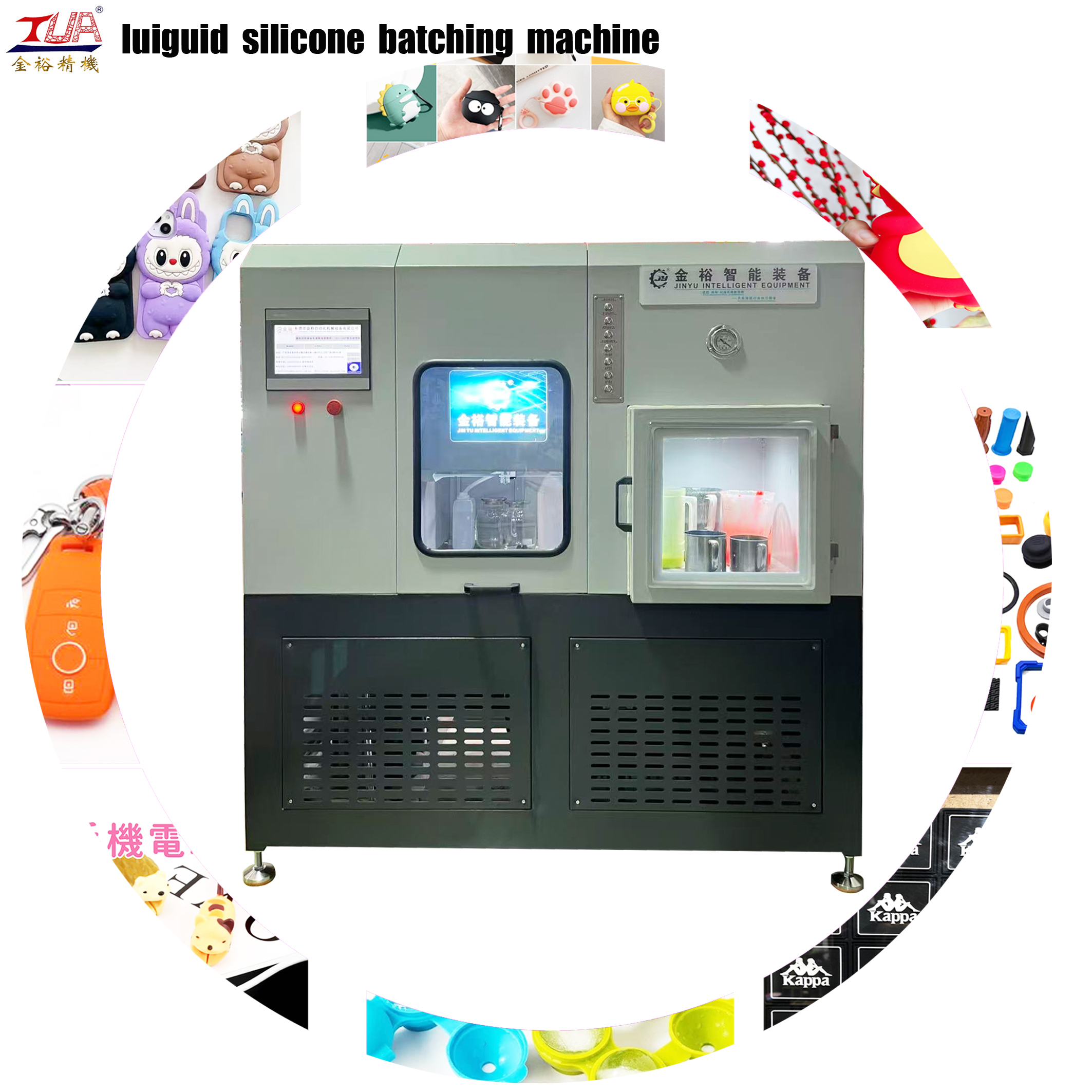

The liquid silicone rubber dosing and batching machine is featured as follows: 1. Machine Structure: The main frame is welded with square steel profiles, ensuring high structural stability and reliability. Sheet metal parts are integrally processed by laser cutting and bending. The surface is finished with paint coating, providing both anti‑rust protection and an attractive appearance. 2. Silicone Supply System: Adopts a pneumatic pressure plate feeding structure for stable material supply. Equipped with a servo motor for quantitative control, ensuring high dispensing accuracy and fast response. Dispensing speed: approximately 500 g/min. Curing Agent / Thinner Supply System. Uses self‑priming high‑precision metering pumps. Driven by stepper motors for high metering accuracy. Dispensing accuracy: ±0.01 g. Dispensing speed: approximately 200 g/min. 4. Vacuum System : Equipped with a rotary vane silent vacuum pump (model XD‑400). Drive motor power: 4 kW. Vacuum pumping capacity: up…
