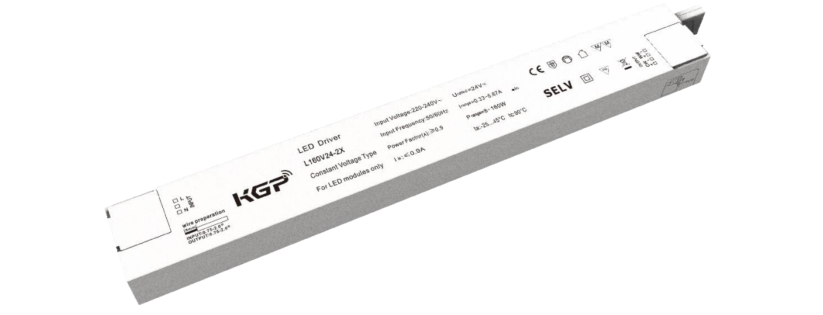

Compact CV IOT 160W LED Driver

1.Product feature Voltage Ripple: ±5% Dimming Range: 1%-100% Protocol Type: IoT modules Protection: Over Voltage / Short Circuit / Over Current / Class II Start Time: ≤1S (220-240VAC) Ambient Temp: -25~45℃ Storage Temp: -25~85℃ 5 Years Warranty Certificates: CE Application: Strip Light, DC LED Strip Size: 310.6×42.5×22.5mm (L×W×H) 2.Product parameter list 3.Parameters 4.Connected quantities of different current Breaker 5. Graph 6.IOT module list approved by KGP   7.Wiring instructions • All connections must be kept as short as possible to ensure excellent EMI performance for the compact led driver and compact round Led Driver.   • Mains leads should be kept separate from the LED driver and other connecting cables, with an ideal distance of 5–10 cm.   • It is recommended that the maximum length of output wires for these drivers is limited to 3 meters.   • Secondary switching is not permitted, except for Constant Voltage versions of the compact round Led D…
