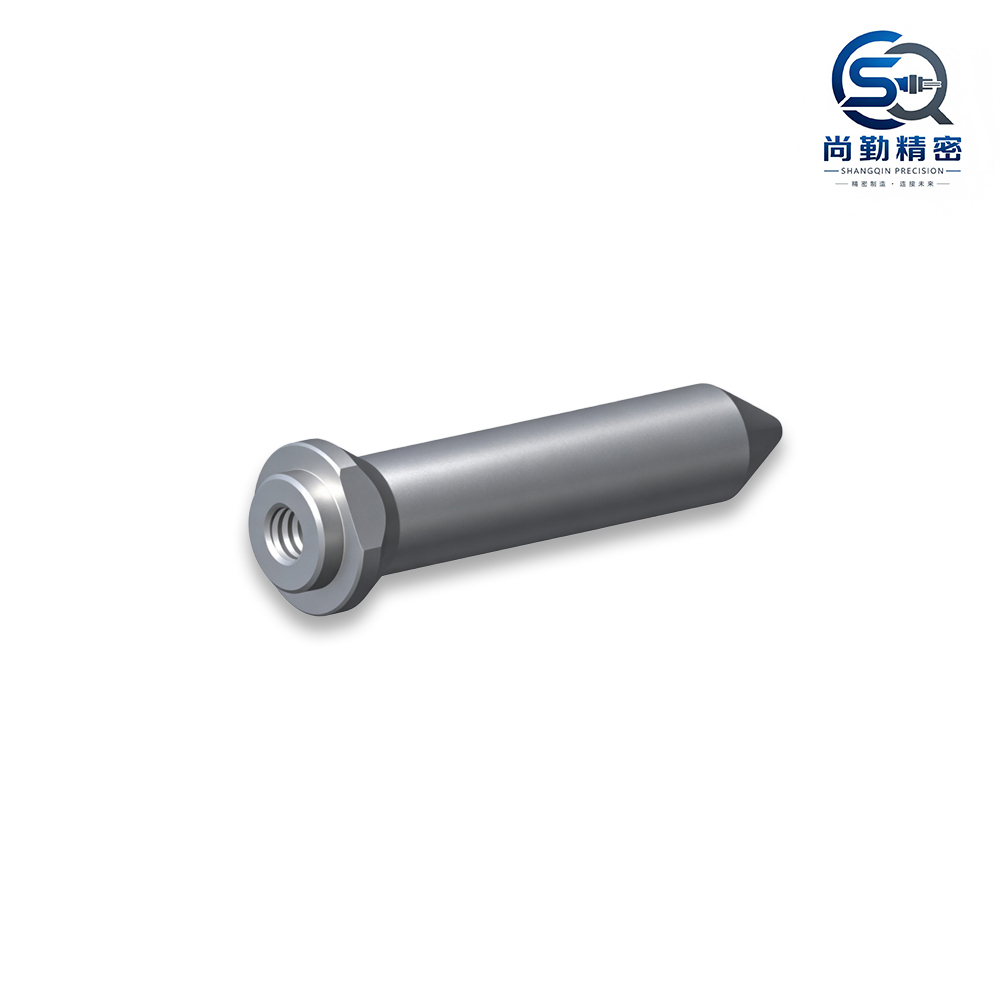

Precision Threaded Steel Guide Pin

Function Description: This component combines dual functions of a locating pin and threaded fastener. The pin section delivers micron‑level positioning accuracy, while the threaded section enables secure locking. It is commonly used in mechanical modules requiring high‑precision reset performance. Shangqin Advantages: The transition section between pin diameter and thread (relief groove) is our key quality‑control focus. We ensure smooth transition without stress‑concentration points, and maintain excellent coaxiality between the pin outer diameter and thread centerline to achieve one‑time assembly with precise positioning. Technical Points: Pin tolerance reaches g6/h6 grade; high‑strength threads support heat‑treatment quenching; tamper‑proof or self‑locking structural designs are available; surface roughness Ra ≤ 0.8μm. This Precision Threaded Steel Guide Pin, part of our product portfolio covering Precision Locating Pins, Bushings & Sleeves, Precision Connector Components, Senso…
