20 L laboratory mixer

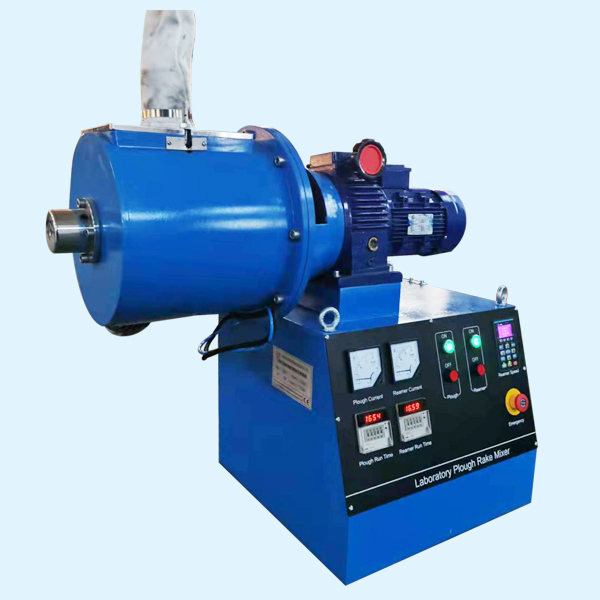

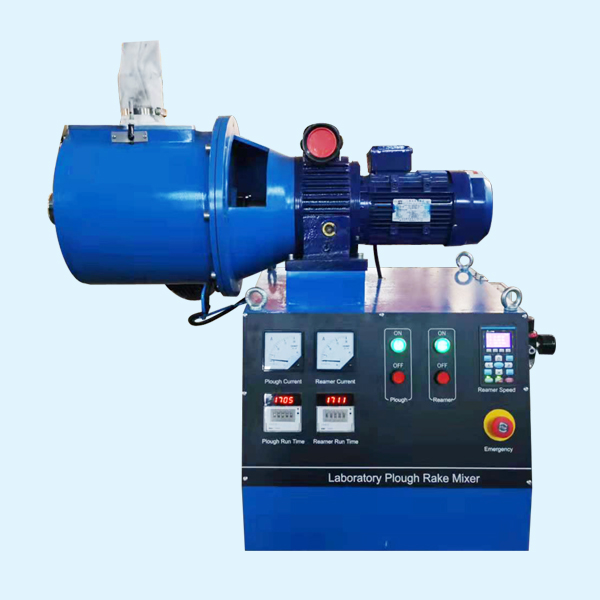

RP820 20 litre mixer technical protocol 1. Usage and characteristics RP820 20 litre mixer is developed by referring to Ludige mixer from Germany. Can be used for chemical, friction materials, food, medicine and other fields of raw material mixing. The machine is specially designed for laboratory formulation research, with the characteristics of uniform and accurate mixing ingredients, simple operation, stepless speed regulation, timing stop and so on. 2. Main technical parameters Volume: 20 l Working capacity: 5 ~ 16L Spindle motor: 1.5kW, 1400r /min,380V,3 phases Spindle speed: 280~1000rpm Spindle timing setting: ≤99min High speed agitator motor: 1.5kW, 2980r/min, High speed agitator timing setting: ≤99min Dimensions: 980x700x700mm Weight: 300 kg 3. Working principle and structural characteristics 3.1 Working Principle Under the action of moving plowshares, the movement tracks of material particles criss-cros…
