Non-stop Butt-Joint Auto Unwinding Paper Splicing

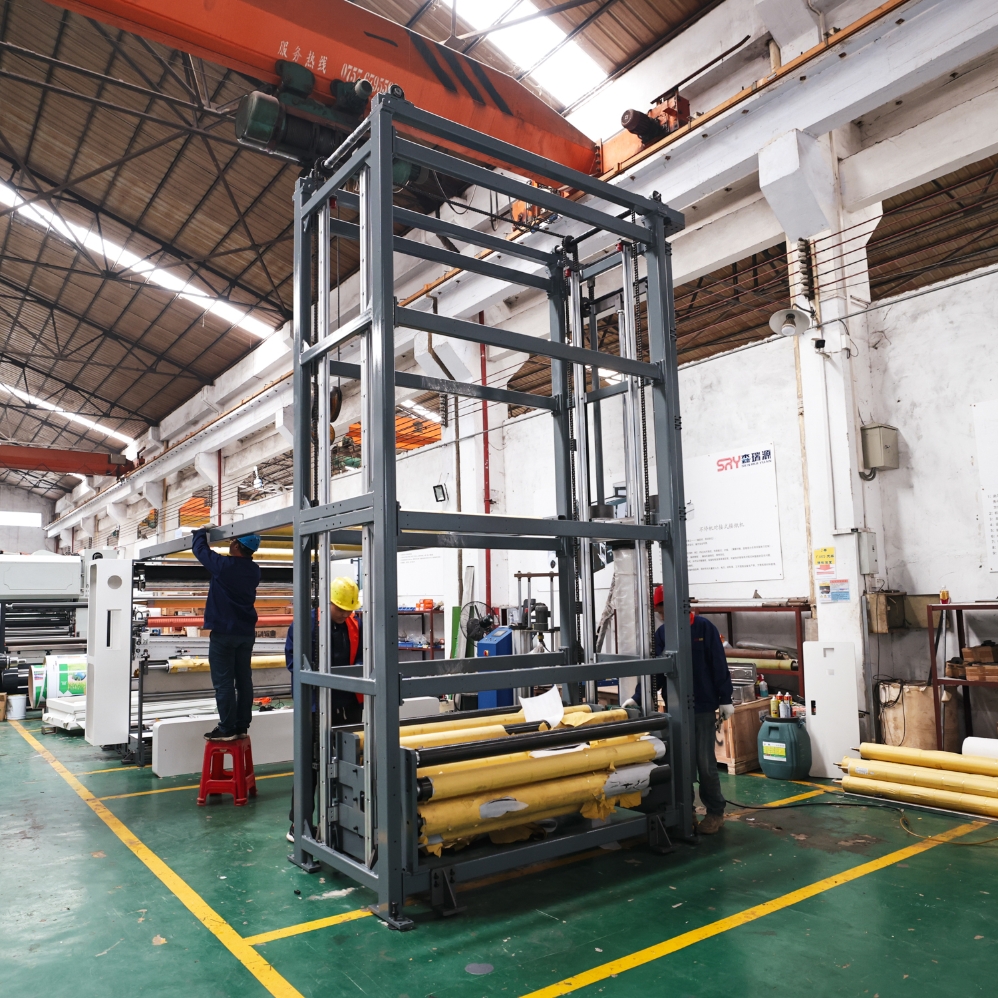

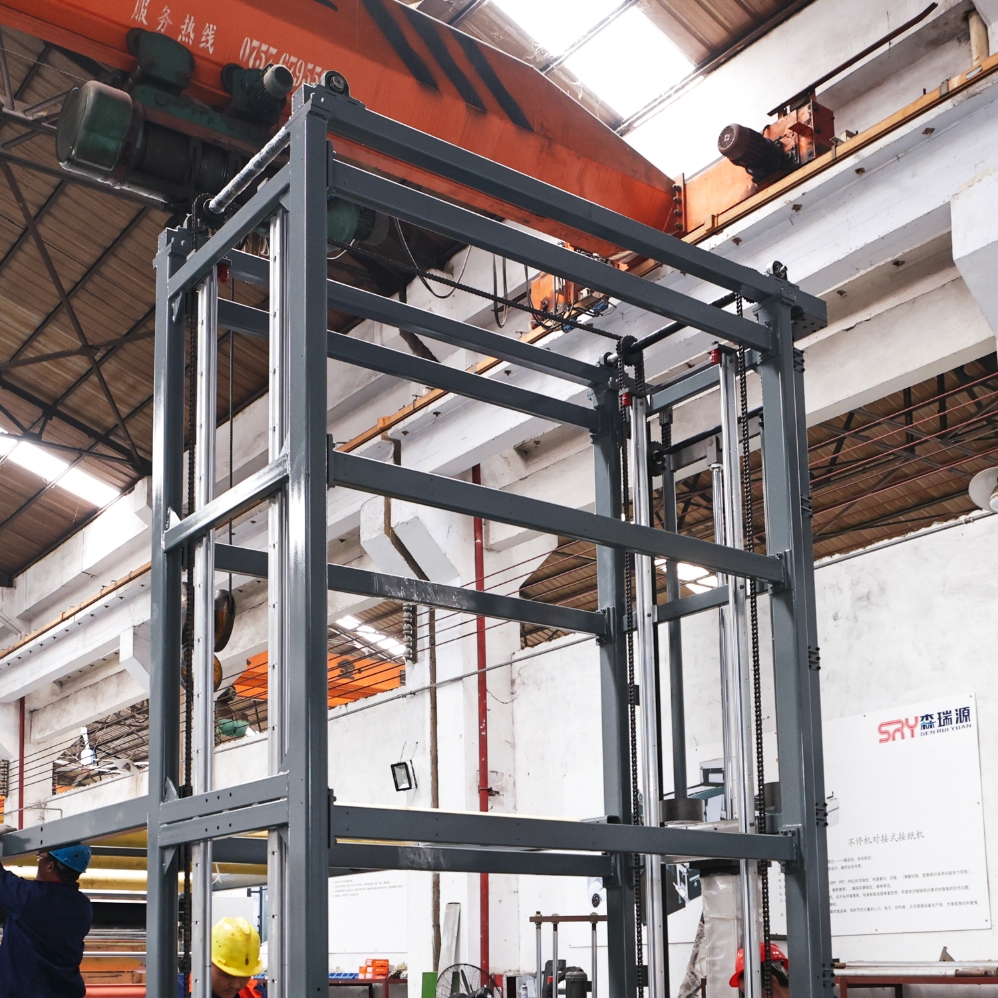

Versatile Integration Across Webline Applications Designed for compatibility, the FL-series butt-joint unwinder can seamlessly connect to varied webline equipment—such as flexo presses, coaters, laminators, dry units, and embossers—while maintaining constant web flow and tension. With width options from 650 mm up to 2,550 mm, it serves both label and corrugating facings, flexible packaging, heavy paperboard, and specialty films. Substrate tolerances extend from 100 to 450 gsm and beyond, supporting polyolefins and films above 25 μm . The zero-speed splice mode ensures that even resin-based flexo printing—known to be sensitive to lap thickness—remains unaffected, as the tape-butt splice does not add structural anomalies. An integrated festoon allows upstream motion to continue feeding the downstream line while the splice is completed. Servo tension controls coordinate web take-up across varying line resistances, maintaining twists, skew, and edge alignment. Roll change control is progra…
