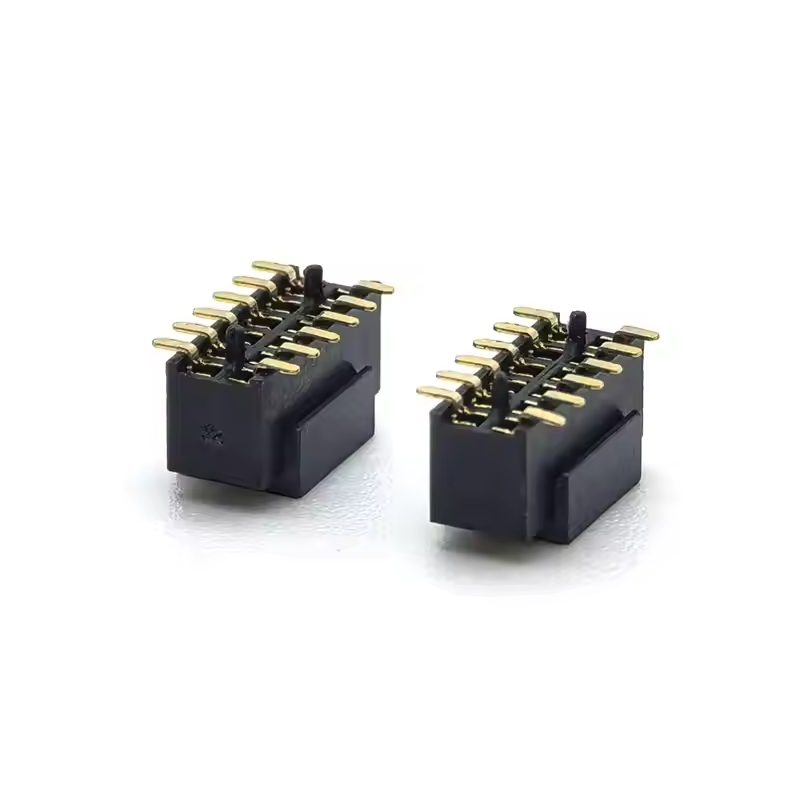

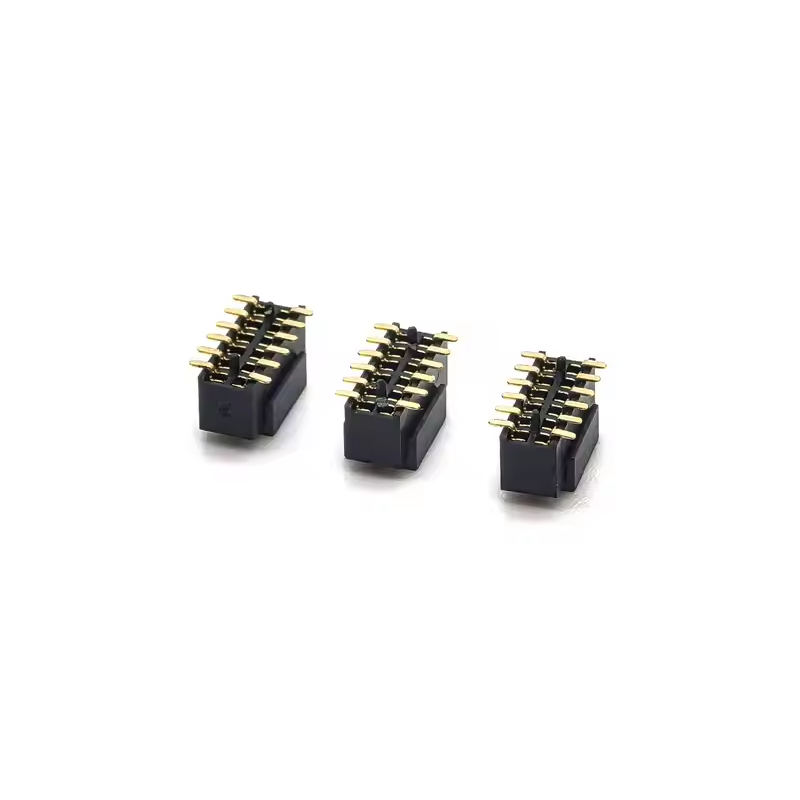

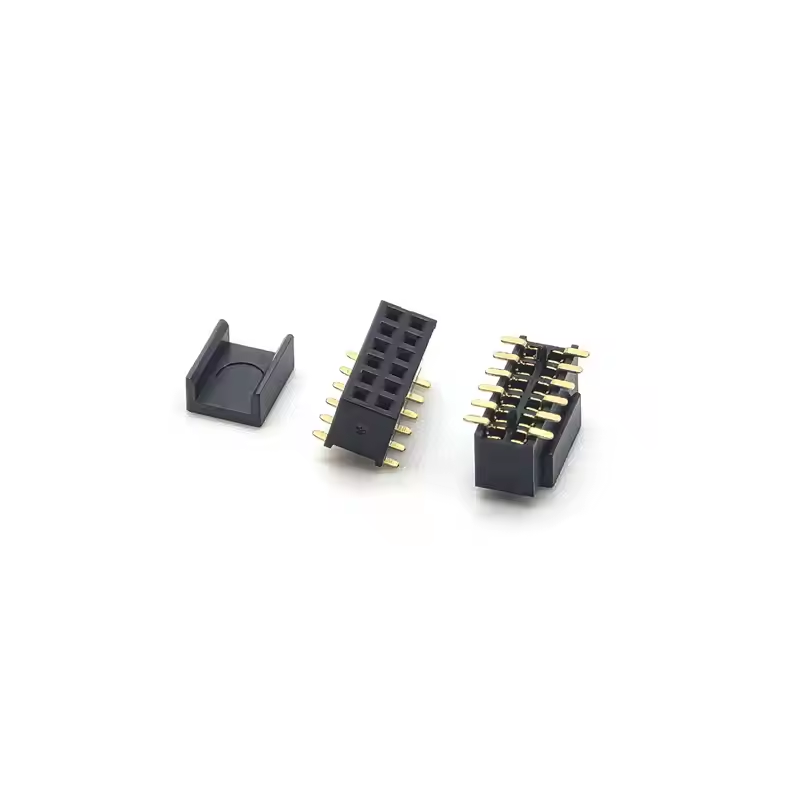

1.27mm Pitch Female Header Connector Dual Row

yztech’s meticulously developed 1.27mm Pitch Female Header Connector Dual Row is a core component for achieving high-density and stable connections in electronic devices. As an important member of the 1.27mm Pitch Header Connector series, its standard 1.27mm pitch and dual-row structure design precisely meet the compact wiring requirements of PCB boards, standing out among similar products for its excellent signal transmission performance and space utilization efficiency.   This connector features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant LCP (UL94V - 0) insulators, stably carrying 3A current in extreme environments ranging from -40°C to +125°C, with a contact resistance as low as 15mΩ. The dual-row layout effectively increases pin density, supporting parallel transmission of multiple signals. It can quickly dock with 1.27 mm pin header smd for efficient interconnection and can also meet the special specification requirem…
