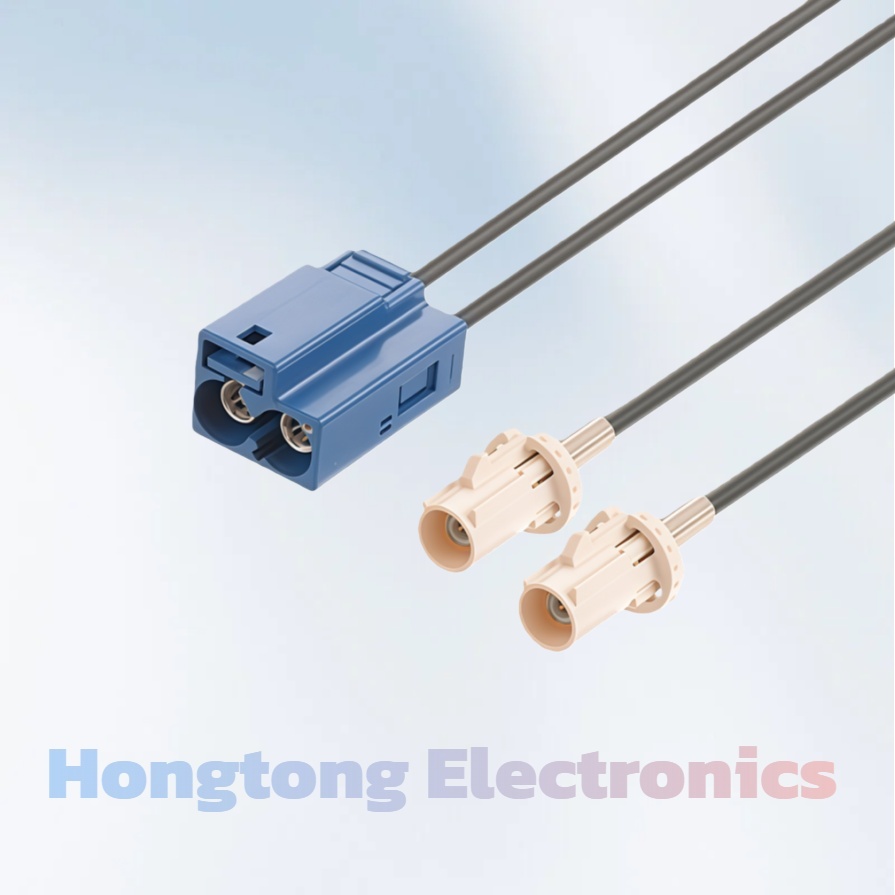

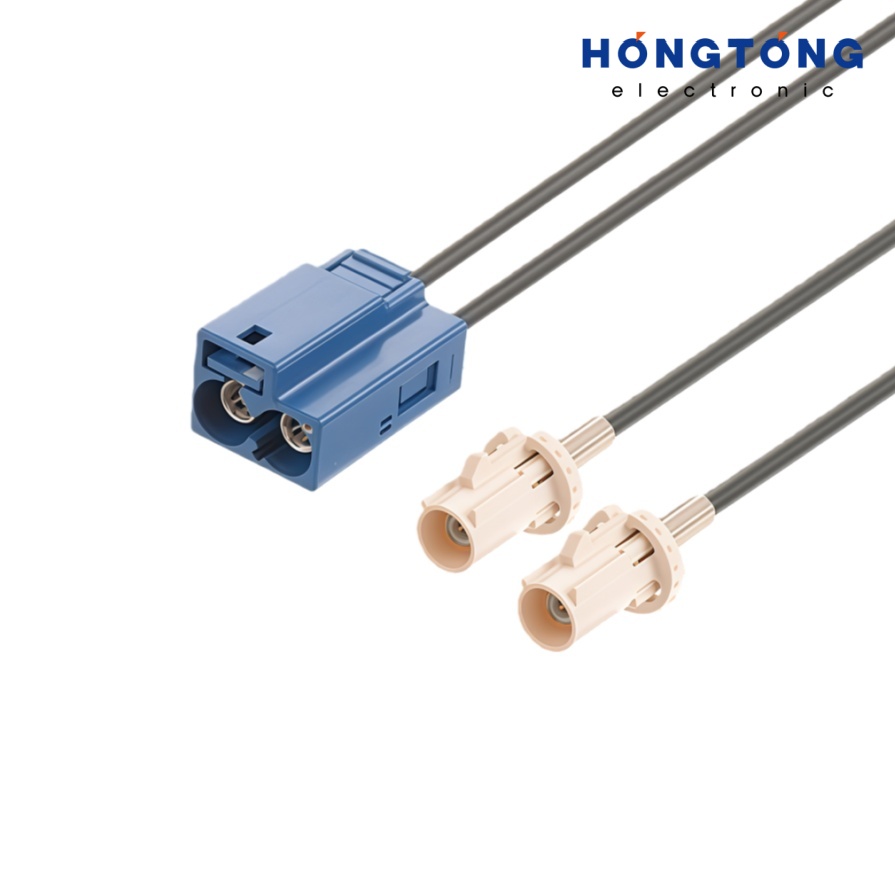

Dual-Parallel FAKRA RF Signal Harness

Double-parallel FAKRA wiring harness is an innovative solution for in-vehicle multi-channel high-frequency signal transmission, realizing dual-channel integrated design based on traditional FAKRA wiring harness. The product adopts an integrated precision wire harness assembly process, with dual-channel conductors made of high-purity silver-plated copper wire cores, insulation layer of low dielectric constant PTFE material, and shared aluminum foil + tinned copper braided double shielding structure with shielding effectiveness ≥85dB, complying with IEC 61169-26 FAKRA standard, USCAR automotive regulations and RoHS environmental requirements. It supports DC-6GHz synchronous transmission, with dual-channel characteristic impedance stably 50Ω, voltage standing wave ratio (VSWR) ≤1.5, and insertion loss difference ≤0.1dB/m (2GHz), suitable for scenarios such as in-vehicle dual radar and surround-view dual cameras. The connector adopts two-color coding anti-misinsertion design, integrated…
