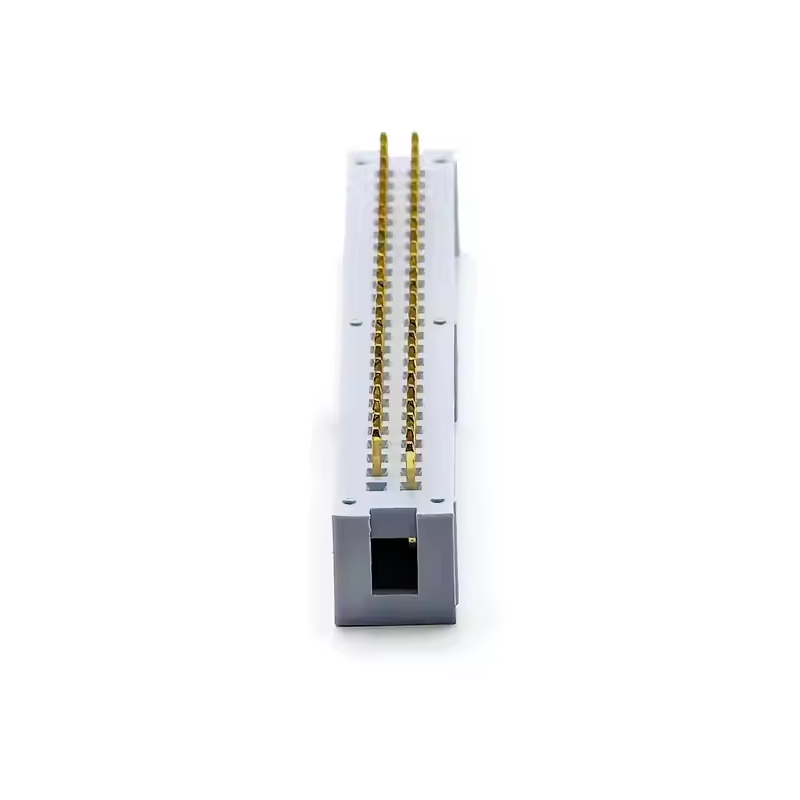

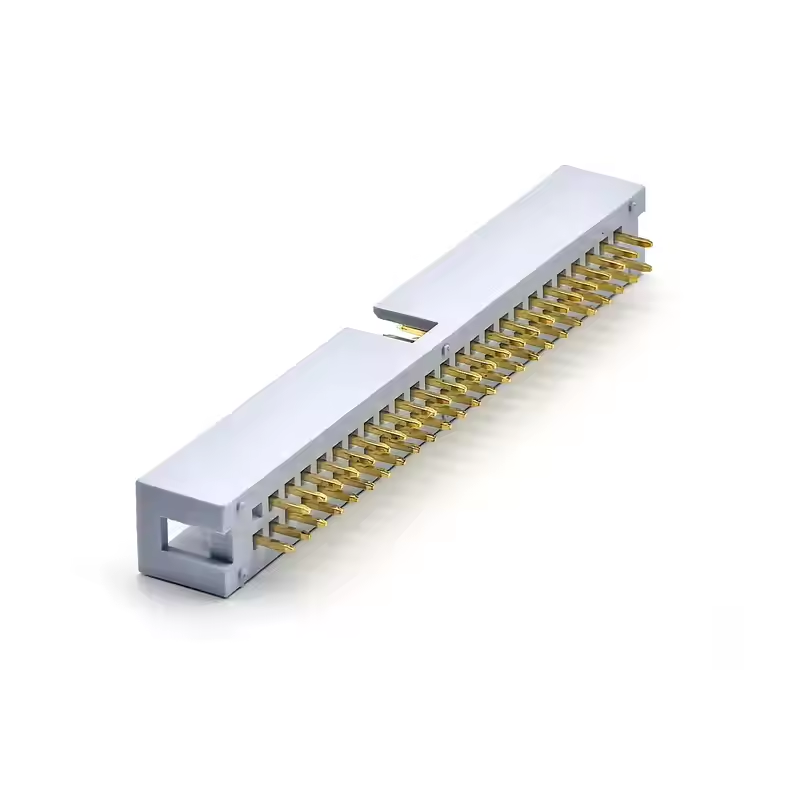

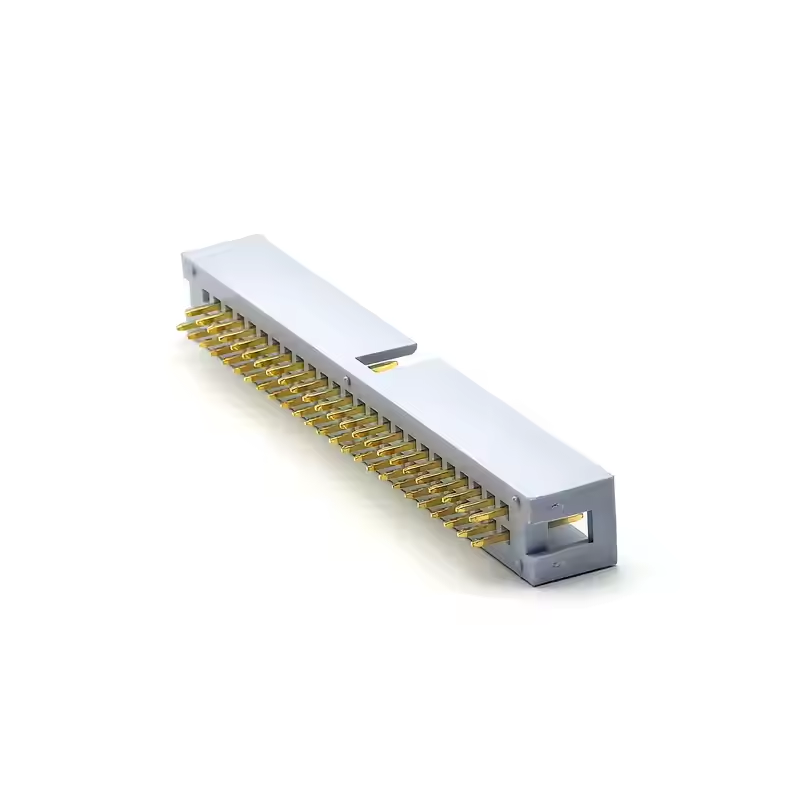

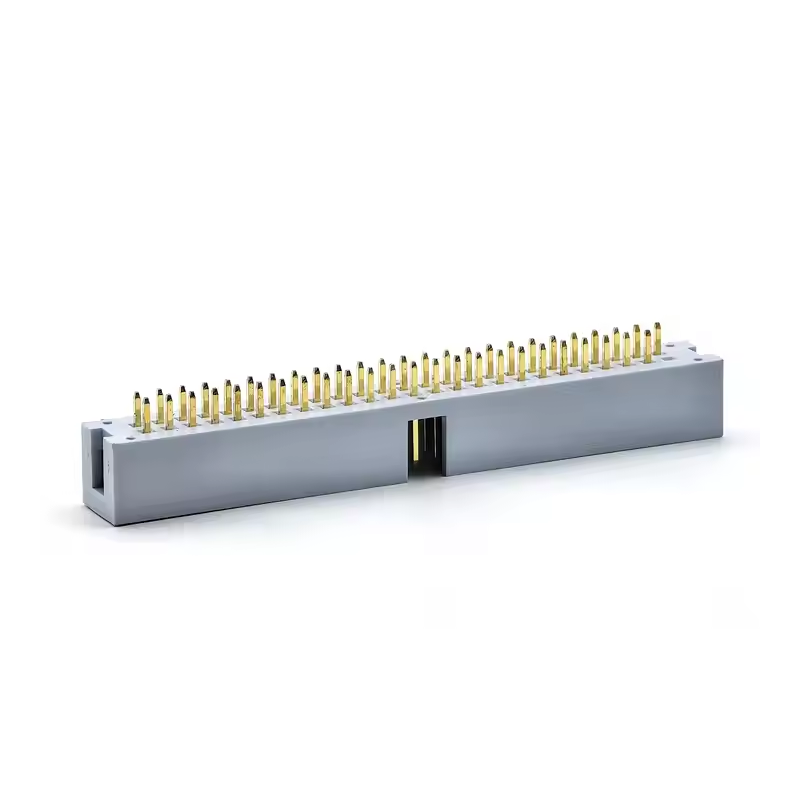

2.54mm Pitch Box header Straight H8.8mm

yztech’s 2.54mm Pitch Box Header Straight H8.8mm, with an 8.8mm height, is specially designed for three-dimensional interconnection needs of large-scale electronic devices. As a high-specification model in the box header series, its standard 2.54mm pitch and 8.8mm height layout precisely meet the vertical installation and multi-layer wiring scenarios of PCB boards, standing out in the 2.54mm box header category for its excellent mechanical support and signal stability.   Featuring phosphor bronze terminals (gold plating thickness ≥50u") and impact-resistant PBT (UL94V-0) housings, the connector stabilizes 5A/pin current in -40°C to +125°C environments with contact resistance ≤15mΩ. The 8.8mm heightened structure supports three-dimensional cross-wiring with Right Angle Box Header, optimizing space utilization while reducing signal interference, and is compatible with diverse expansion needs of idc box header connector. The 12-64 PIN modular configuration is suitable for high-current sc…
