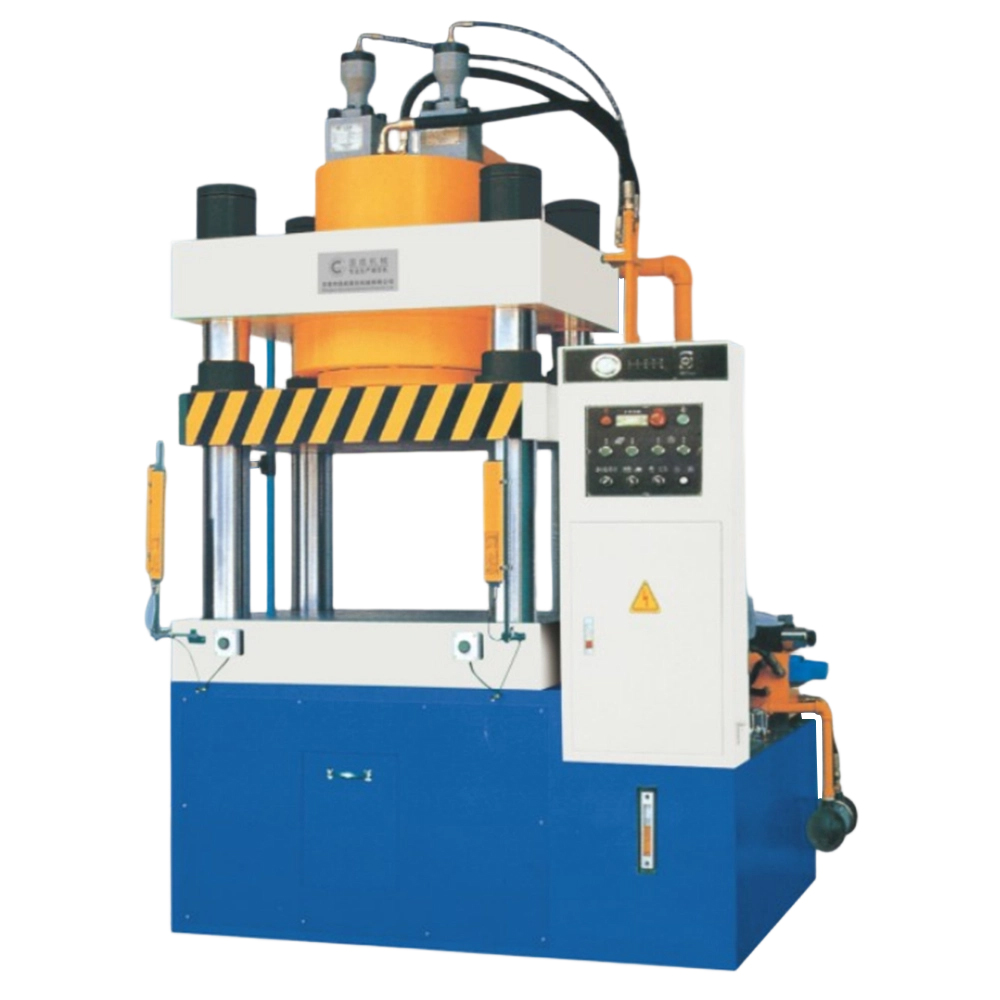

High Precision Four Column Hydraulic Press

High Precision Four Column Hydraulic Press   High-Precision Guiding for Uneven Workpieces   The frame and movable table are built with a high-precision guiding structure, giving the press good rigidity and resistance to side loads. This is especially useful when the workpiece is not symmetrical, since the table can stay properly guided while pressure is applied. For manufacturers handling different forming jobs, this structure helps keep the pressing process more stable. Item Unit GCSF‑100 GCSF‑200 GCSF‑300 GCSF‑500 Rated Pressure Ton 100 200 300 500 Maximum system pressure MPa 25 22 24 25 Activities Table travel mm 110 150 150 150 Opening Height mm 310 350 400 450 Fixed table height above the ground mm 310 350 400 450 Activity table speed downlink mm/s 120 110 110 100 Activity table return rate mm/s 120 100 100 30 Effective area of working table (Left‑right) mm 430 520 560 700 Effective area of working table (Forward‑backward) mm 430 500 560 800 Machine…
