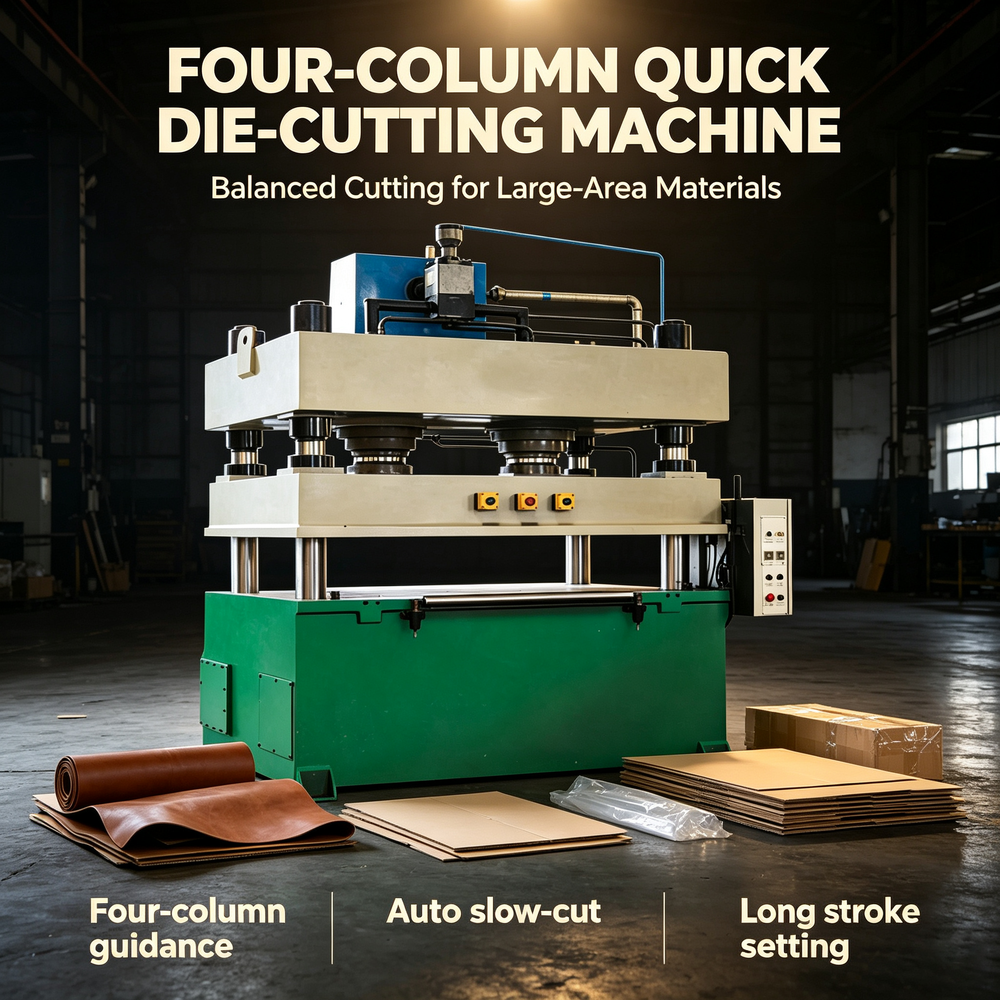

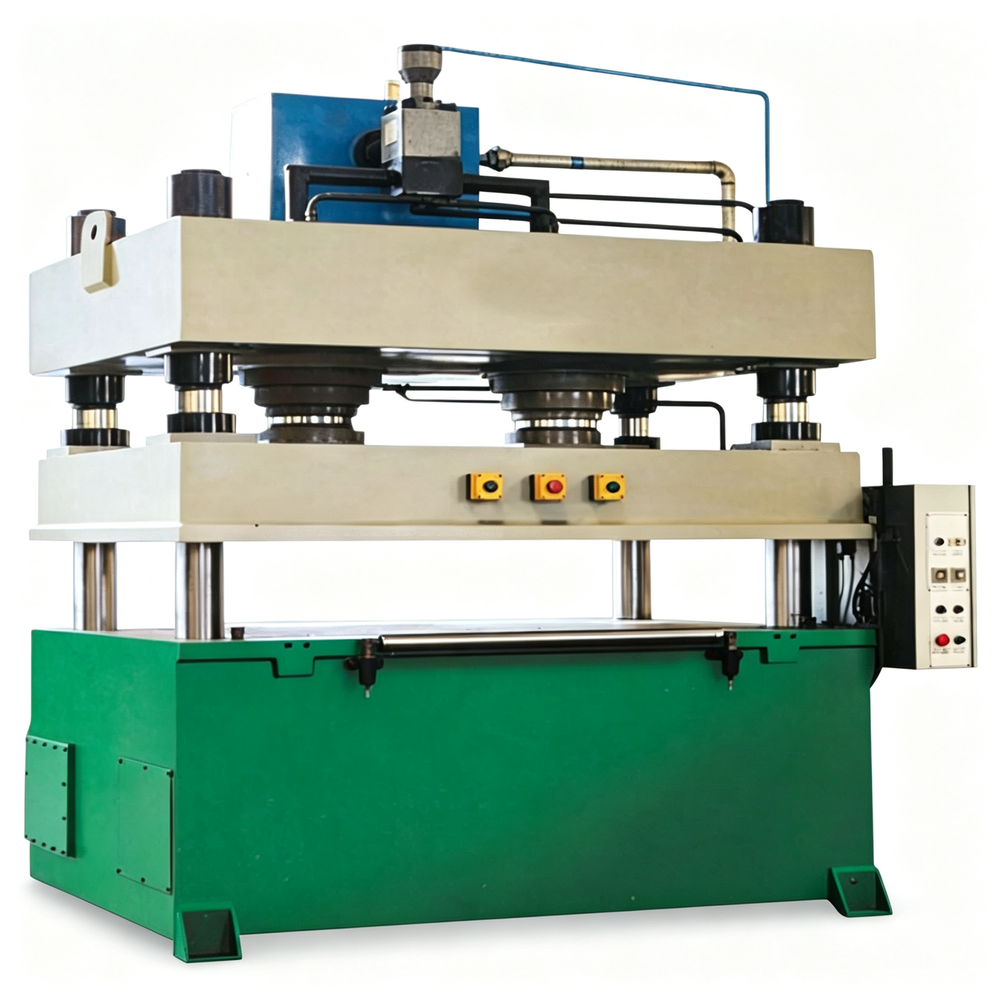

Four Column Fast Hydraulic Die Cutting Press

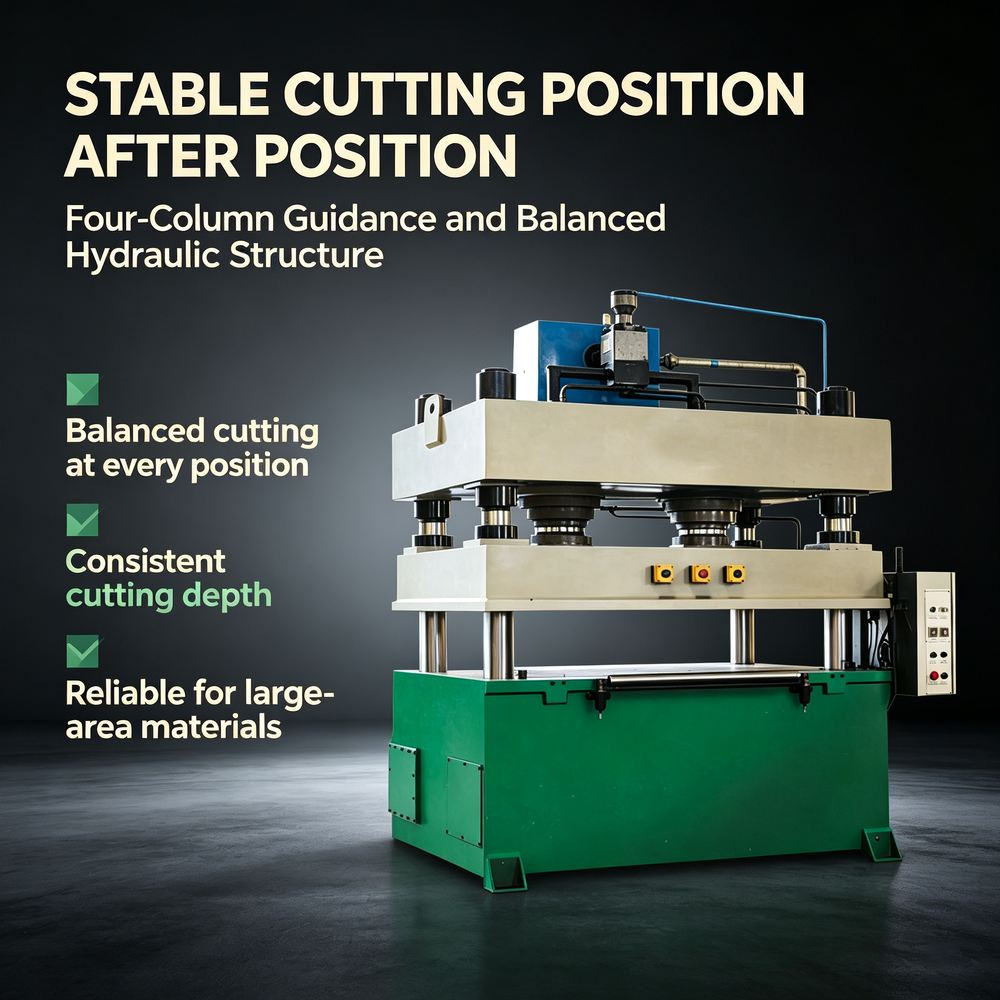

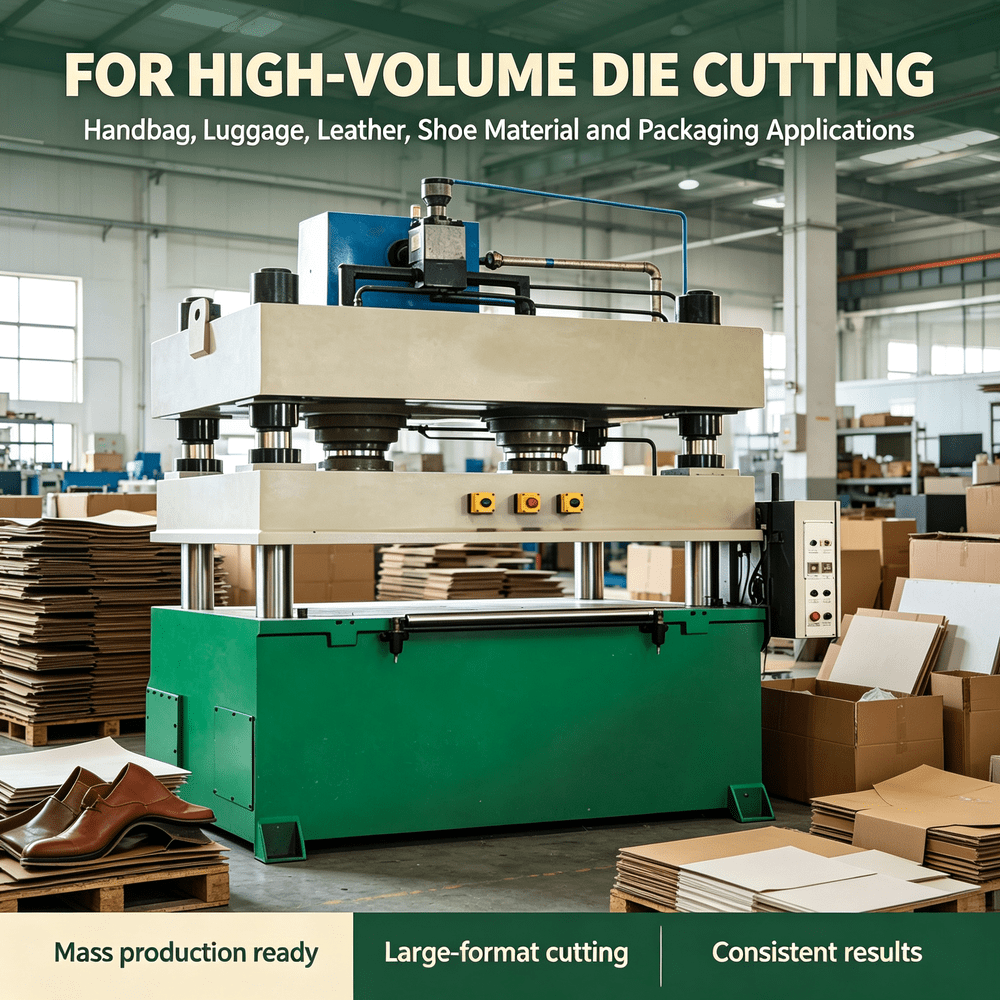

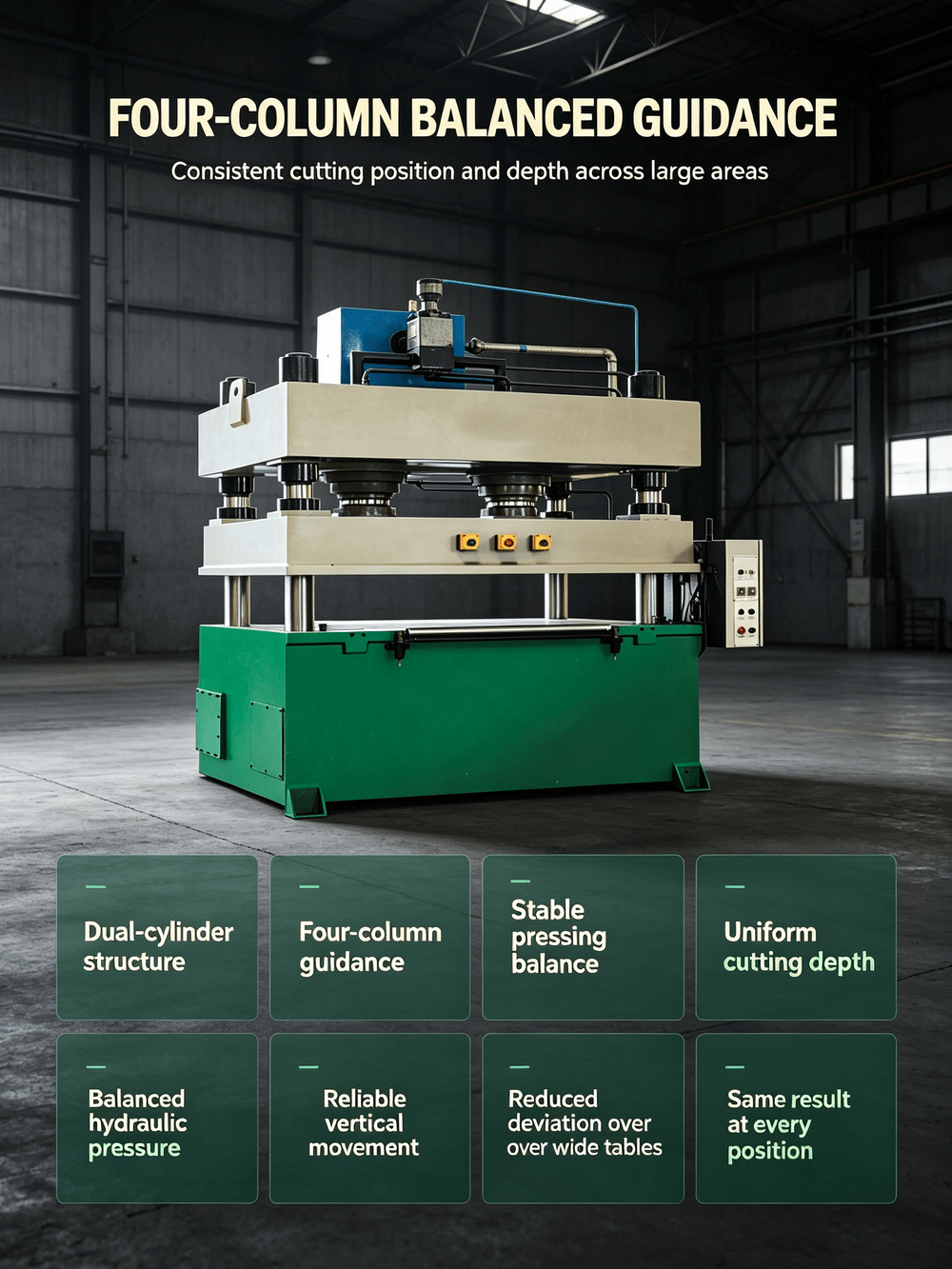

Four Column Fast Hydraulic Die Cutting Press Top-Mounted Cylinders for Large Cutting Areas   The Top double cylinder die cutting machine uses a top-mounted double-cylinder structure with four-column guidance. The cylinders sit above the working area, leaving a large and open cutting space underneath. When the cutting board moves down, the four-column guide system keeps the movement steady across the working area. This setup is especially useful when large dies or wide sheets need to be processed in one operation. Item GCSS‑100SS GCSS‑150SS GCSS‑200SS GCSS‑250SS GCSS‑300SS Cutting Power 100T 150T 200T 250T 300T Stroke 50~300mm 50~300mm 50~300mm 50~300mm 50~300mm Motor Power 5.5KW 7.5KW 11KW 15KW 15KW Cutting Size(mm) 1600×1200 1600×1500 1800×1200 1800×1500 2000×1600 The machine is made for production involving handbags, luggage, leather goods, shoe materials, plastics, electronics, paper products, wood, toys and packaging materials. For luggage factories working w…
