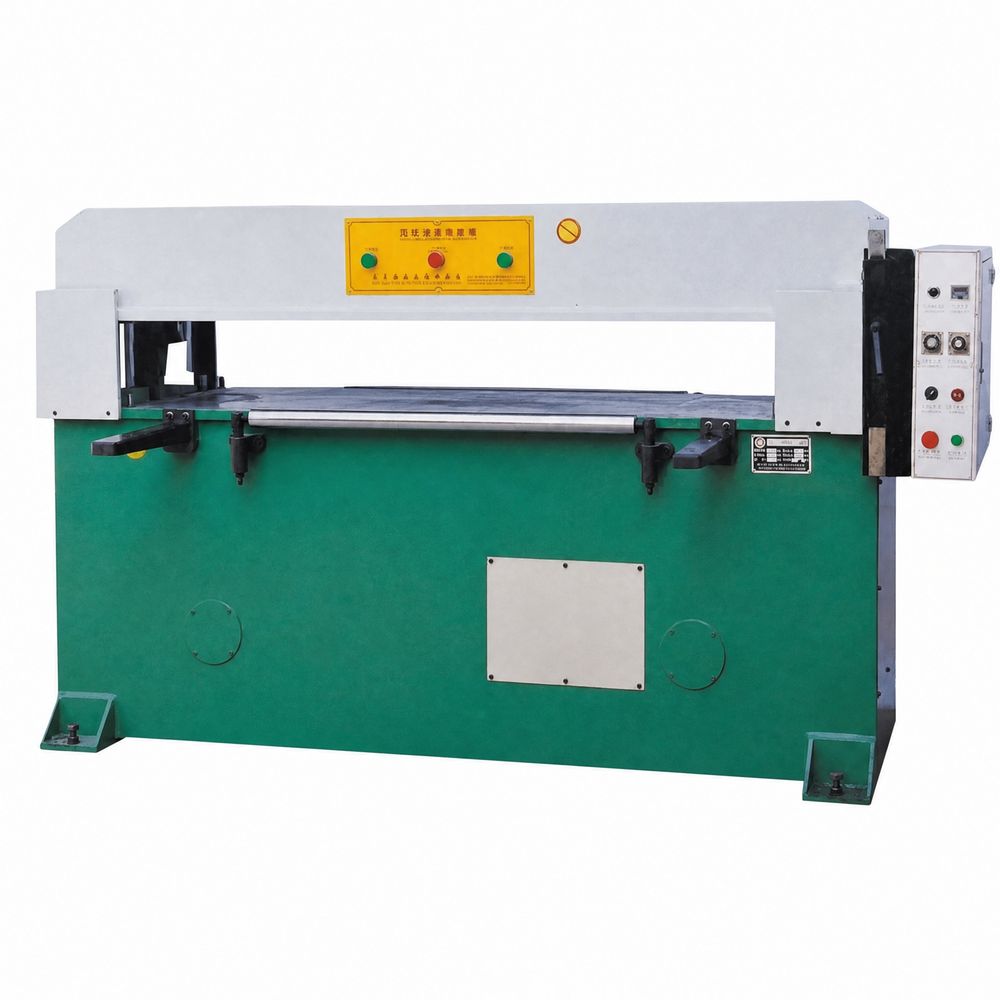

Precision Four Column Hydraulic Die Cutting Machine

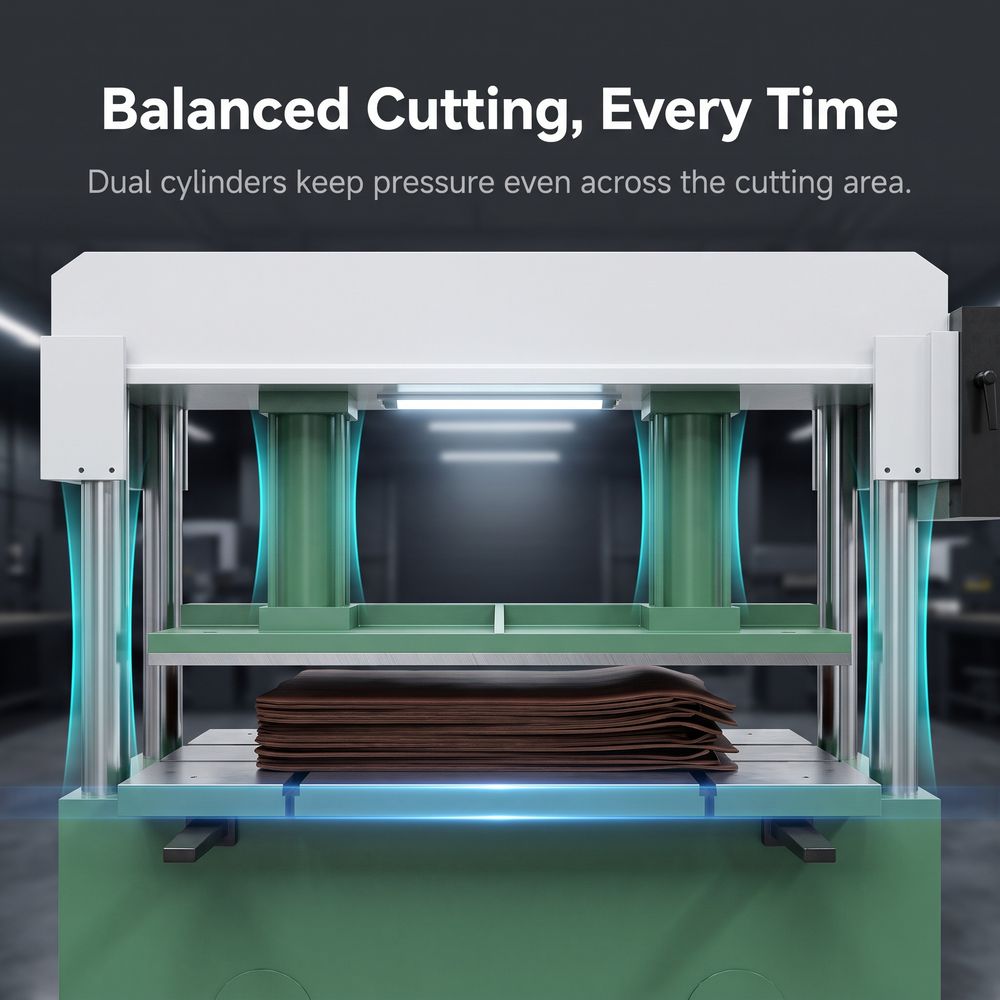

Precision Four Column Hydraulic Die Cutting Machine Double-Cylinder Structure for Balanced Cutting   The Four column hydraulic die cutting machine uses a double-cylinder drive with four-column guidance to keep the cutting board balanced as it moves down. The main benefit is straightforward: the cutting position and depth can stay consistent across repeated cycles. This is important when the same die is used to cut a large number of pieces and every piece needs to come out with the same dimensions. Item GCS‑20S GCS‑30S GCS‑40S GCS‑50S GCS‑60S GCS‑80S Cutting Power 20T 30T 40T 50T 60T 80T Stroke 50~210mm 50~210mm 50~215mm 50~215mm 50~185mm 50~185mm Motor Power 2.2KW 3KW 4KW 4KW 5.5KW 7.5KW Cutting Size(mm) 1200×500 1600×600 1600×600 1600×800 1600×800 1600×1000 The balanced structure makes this Double cylinder precision cutting press suitable for production involving handbags, luggage, shoe materials, plastics, paper products, toys, and packaging materials. For fact…
