Five column power transformer‌

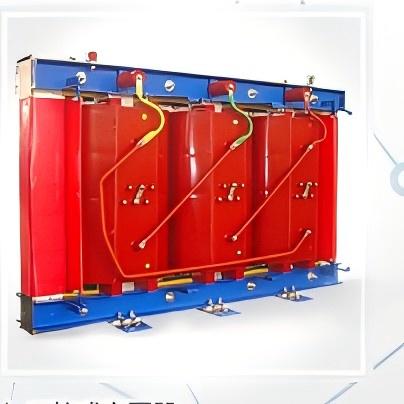

  Five-Column Power Transformer by LEABE — Engineered for Industrial Efficiency Product Overview LEABE Five-Column Power Transformer is a high-performance Industrial Transformer designed for demanding power distribution environments. With capacity ranging from 3 KVA to 3150 KVA, it supports high-voltage inputs from 3 KV to 35 KV and low-voltage outputs from 0.1 KV to 10 KV (commonly 0.4 KV). This transformer is ideal for applications requiring low no-load loss, minimal noise, and superior short-circuit resistance. As a specialized Epoxy Resin Transformer and SC Transformer, it delivers reliable power conversion for both standard and custom industrial setups. Technical Specifications Rated Capacity: 3 KVA – 3150 KVA High Voltage (HV): 3 KV – 35 KV Low Voltage (LV): 0.1 KV – 10 KV (standard 0.4 KV) Core Material: High-quality cold-rolled silicon steel sheets Coil Insulation Class: Class F (HV), epoxy resin sealed (LV) Winding Type: Multi-stage segmented cylindrical (HV), foil str…
