Low Ripple Rectifier Transformer

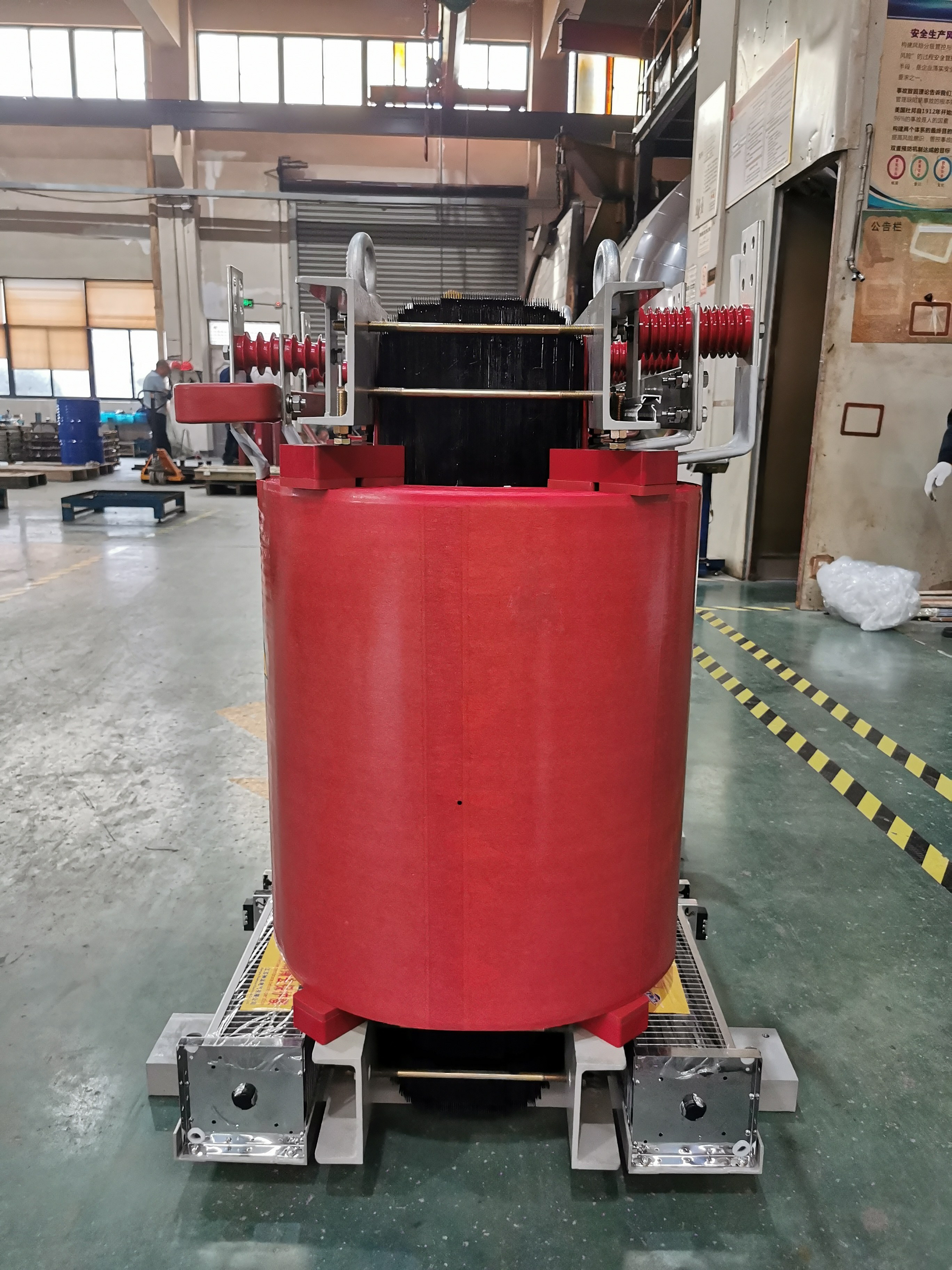

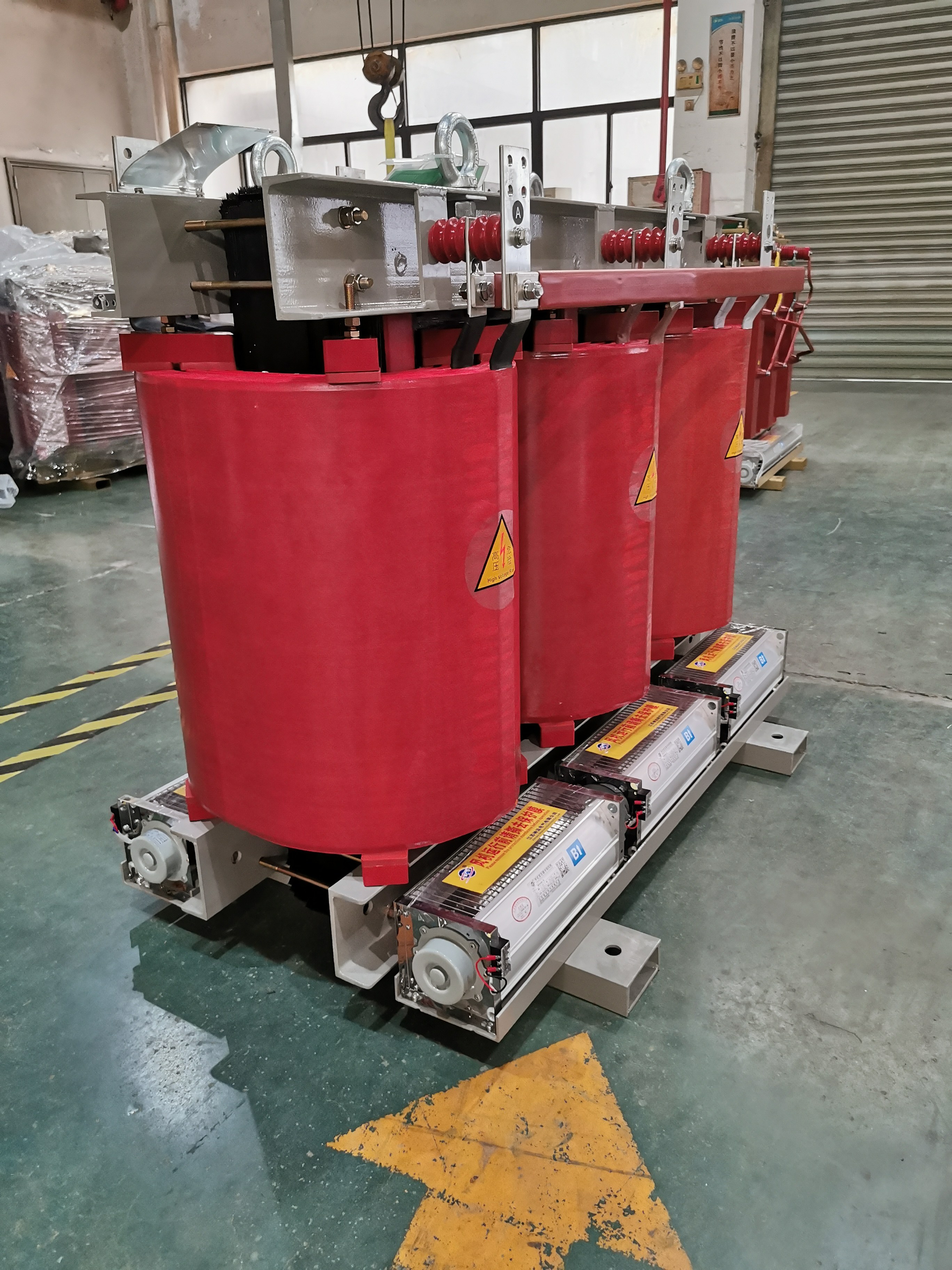

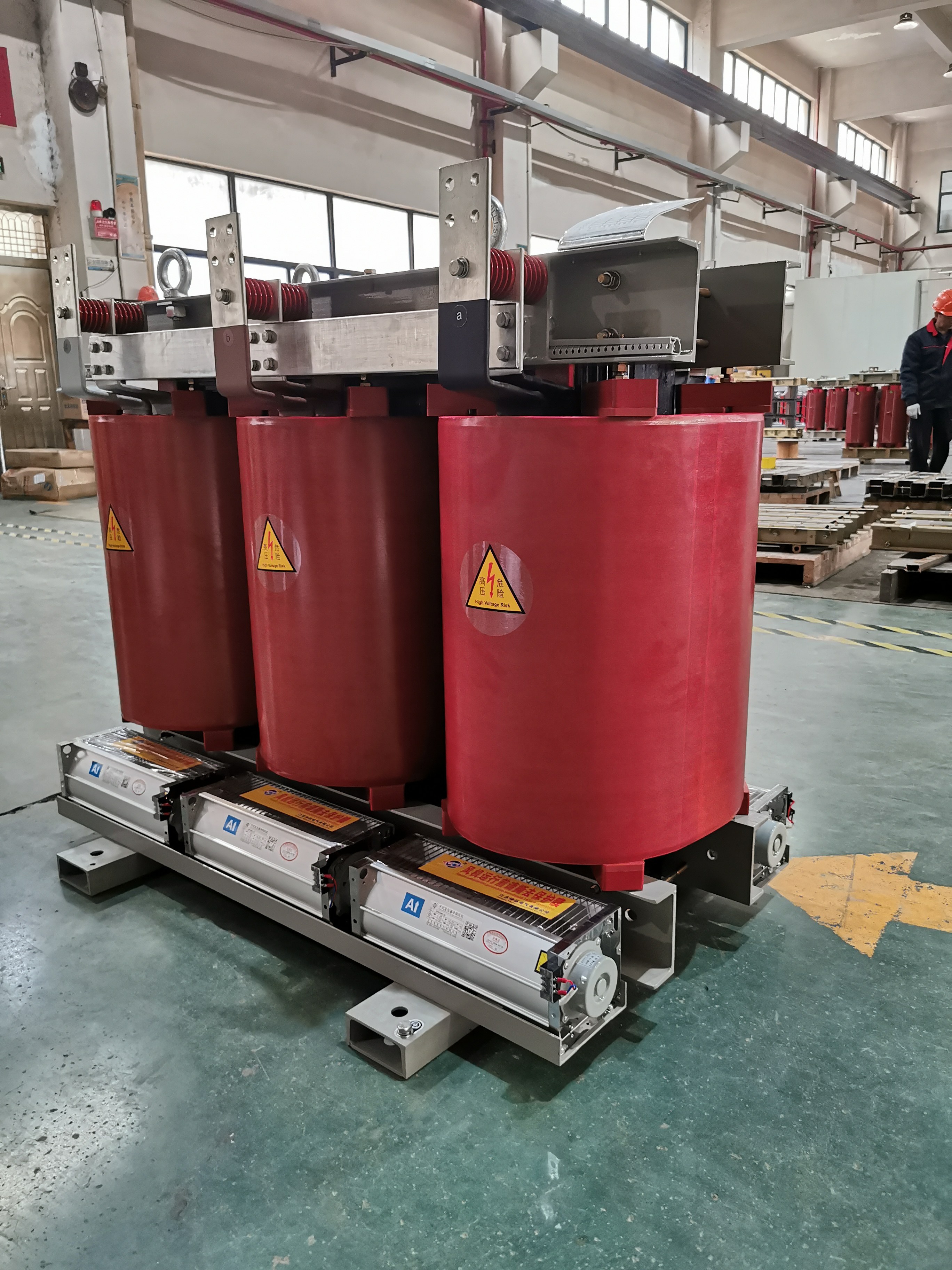

LEABE Low-Ripple Rectifier Transformer & Motor Starting Transformer Product Overview The LEABE Low-Ripple Rectifier Transformer series, specifically our QOSC epoxy resin insulated starting transformers, are engineered to ensure the safe and efficient startup of large AC asynchronous motors. When a motor starts at rated voltage, the initial inrush current can surge to 5-7 times its rated value, causing severe voltage drops and instability in the power grid. Our Motor Starting Transformer utilizes a voltage reduction method to limit this starting current, protecting both the motor and the electrical network. Designed as a robust Dry-Type Transformer, it provides a reliable solution for high-power applications ranging from 220KW to 20,000KW. By temporarily reducing the voltage during the startup phase (typically lasting seconds to two minutes), LEABE transformers minimize mechanical stress on the motor windings and extend equipment lifespan. Technical Specifications Rated Powe…
