Single phase parallel reactor

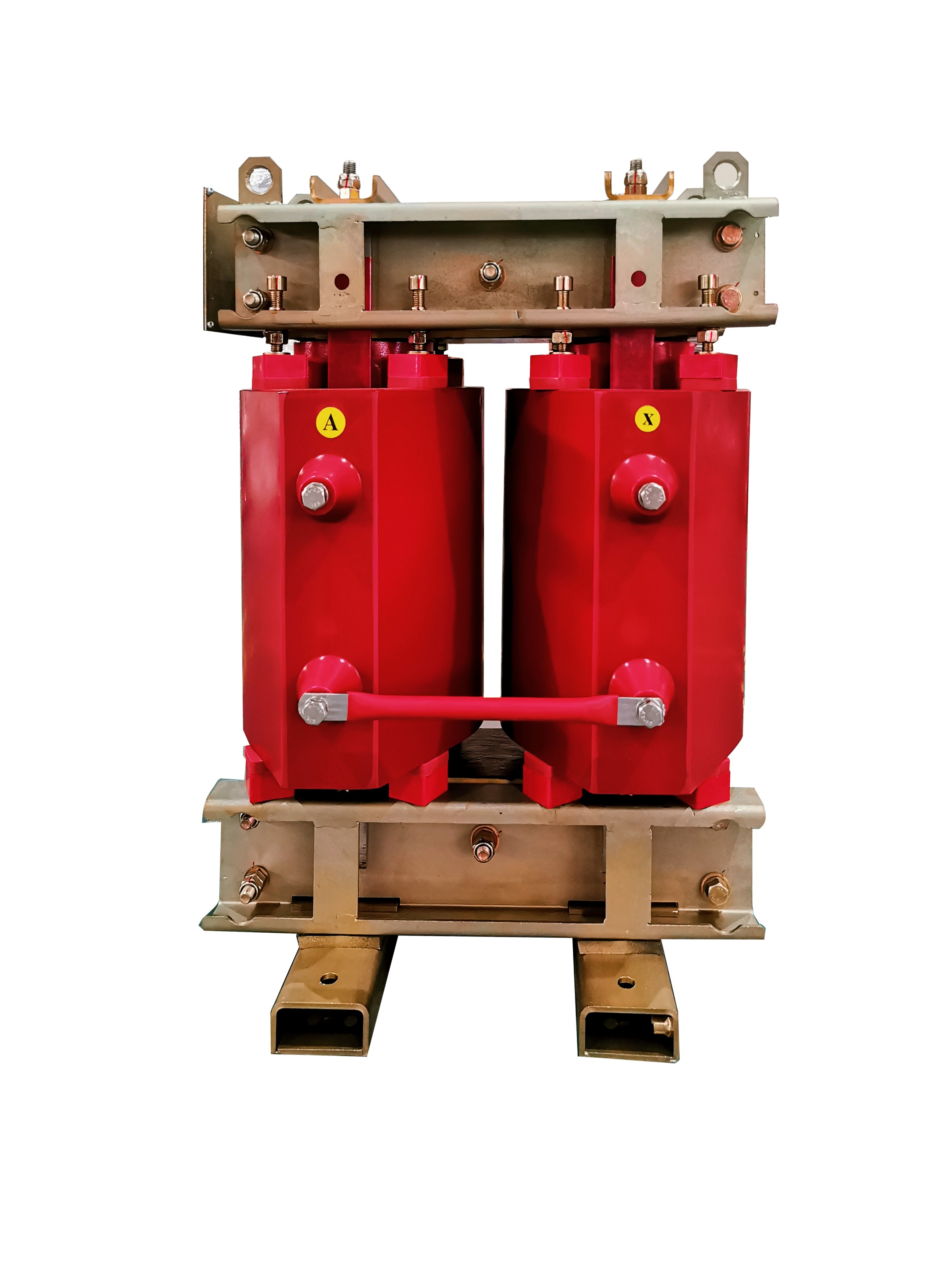

LEABE BKSC Series Single-Phase Parallel Reactor (Shunt Reactor) Product Overview The LEABE BKSC Series Single-Phase Parallel Reactor, commonly known as a Shunt Reactor, is a critical Power Quality Reactor designed to stabilize voltage profiles in long-distance transmission and distribution networks. Unlike series reactors that limit current, this Dry Type Reactor is engineered to absorb excess capacitive reactive power generated by unloaded or lightly loaded lines. By compensating for the Ferranti effect, the BKSC Reactor prevents dangerous voltage rises, improves voltage distribution, and protects generators from self-excitation resonance, making it an indispensable component for high-voltage single-phase systems like railway electrification. Technical Specifications Rated Capacity: 30 kvar – 3000 kvar (per phase) Rated Voltage: 3 kV – 35 kV (Single-phase) Insulation Class: F (155°C) Cooling Method: Air Natural (AN) Connection Type: Parallel (Shunt) Core Material: High-grade c…
